7 Inch IPS Touch Panel 1024x600 Resolution MIPI Touch Screen 450nits

Name: 7 Inch IPS Touch Panel 1024x600 Resolution MIPI Touch Screen 450nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY070
Price: 12.31 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY070

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 12.31

Packaging Details: 21.4*14.7*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              7 Inch IPS Touch Panel, IPS Touch Panel 1024x600, MIPI Touch Screen 450nits


Product Name:	IPS Touch Panel	LCD Size:	7" TFT
Outline Dimension:	163.8 × 97 × 12.6 Mm	Display Area:	154.21 × 85.92 Mm
Number Of Pixel:	1024 × 600 Pixels	Brightness:	450 Cd/㎡
Interface:	30 PIN MIPI	Viewing Angle:	178° (All Directions)

Product Name:	IPS Touch Panel
LCD Size:	7" TFT
Outline Dimension:	163.8 × 97 × 12.6 Mm
Display Area:	154.21 × 85.92 Mm
Number Of Pixel:	1024 × 600 Pixels
Brightness:	450 Cd/㎡
Interface:	30 PIN MIPI
Viewing Angle:	178° (All Directions)

Description

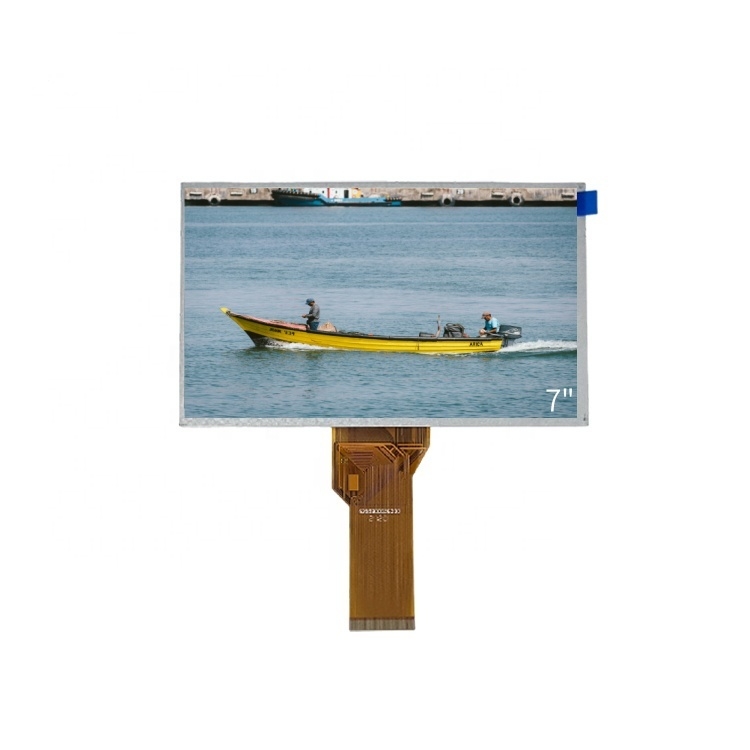

7 Inch IPS Touch Panel 1024x600 Resolution MIPI Touch Screen 450nits

7-Inch IPS Touch Panel Monitor 1024x600 Resolution 450nits With MIPI Interface

High-performance 7-inch IPS touch panel monitor with 1024×600 resolution, 450nits brightness, and MIPI interface. Designed for exceptional visibility and responsiveness in demanding environments.

Technical Specifications

Display Size	7" TFT
Dimensions	163.8 × 97 × 12.6 mm
Display Area	154.21 × 85.92 mm
Resolution	1024 × 600 pixels
Brightness	450 cd/㎡
Interface	30 PIN MIPI
Viewing Angle	178° (All directions)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

High-brightness 450nits display for excellent sunlight visibility
Wide 178° viewing angles for clear visibility from any position
Crystal-clear image quality with 1024×600 resolution
Highly-responsive touch capabilities
Fast data transmission through MIPI interface
Robust design for operation in extreme temperatures (-20°C to 70°C)

Applications

Ideal for industrial control systems, medical equipment, point-of-sale terminals, and other applications requiring reliable, high-visibility touch displays in challenging environments.
